Compact
Compact
Soil cultivators
Description
Preparing the fields for optimum yields

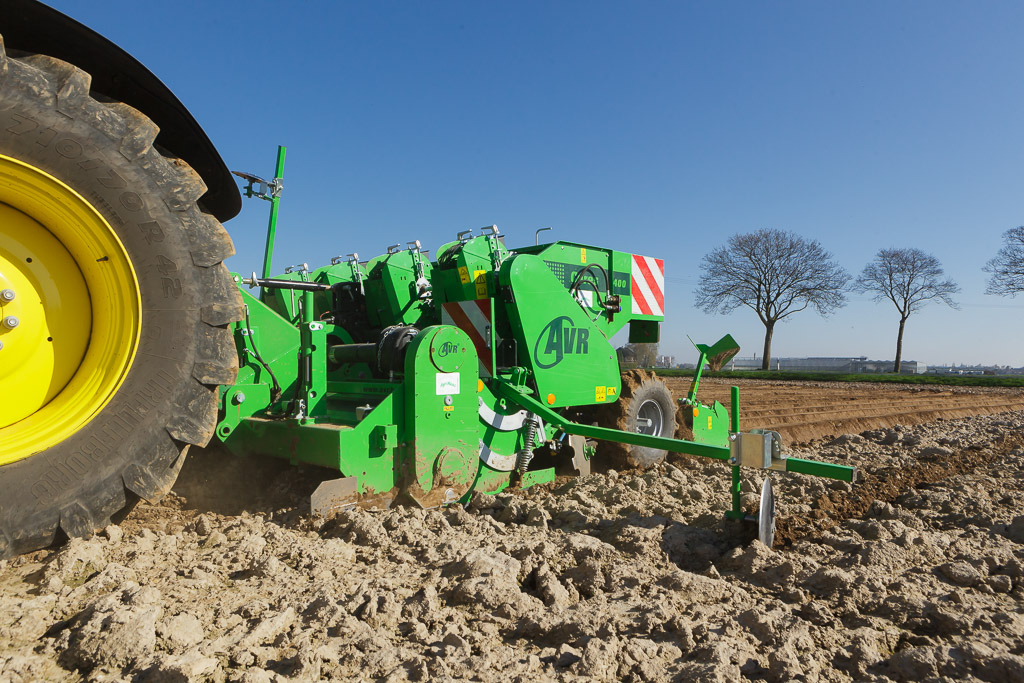

The AVR Compact cultivator is a full field cultivator for use in combination with a planter or seeder. Cultivating, crumbling, planting and ridging can be executed behind the tractor in one working passage, which means wide tires can be used. This compact cultivator is equipped with a three-point linkage system, to which a Ceres planter can easily be coupled.
The tines are welded in a helix shape to assure the cultivator runs in a straight line.
Compact machine, lower fuel consumption
By mounting the hydraulic tines in the frame (instead of in front of it) and the soil openers on the cultivator (instead of on the planter), we were able to significantly restrict the machine’s length. The hydraulically depth-adjustable cultivating tines (optional) break up the tractor’s tracks. By cultivating in cracked soil, less fuel is consumed.
Specifications
Compact
- Best possible planting bed preparation behind the tractor.
- No frontal PTO drive shaft necessary.
- Compact, weight close behind the tractor.
- Culti set for soil loosening prior to planting bed preparation.
| 4 x 75 | 4 x 90 | |
| Dimensions (l x w x h in m) | 3,300 x 1,340 x 1,550 | 3,900 x 1,340 x 1,700 |
| Number of tines | 108 (50 x 12 mm) | 128 (50 x 12 mm) |
| Weight (kg) | 1,700 | 1,735 |
| Required kW/hp (min.) | ||
Compact 4 x 75
- Machine for back mounting (3088 mm)
- 3-Point linkage for planting machine behind cultivator
- Robust chassis
- HD drivetrain (upto 250 hp) with cam clutch (3200 Nm)
- Rotor with 108 HD welded tines 50x12 mm (M16 - 10,9 + M12 - 8,8)
- Sidedrive with sprockets (HD) (std 416 rpm)
- Self cleaning hood thanks to mounting in springs
- Fullfield plate which forms planting gullies (with depth adj)
Compact 4 x 90
- Machine for back mounting (3700 mm)
- 3-Point linkage for planting machine behind cultivator
- Robust chassis
- HD drivetrain (upto 250 hp) with cam clutch (3200 Nm)
- Rotor with 128 HD welded tines 50x12 mm (M16 - 10,9 + M12 - 8,8)
- Sidedrive with sprockets (HD) (std 416 rpm)
- Self cleaning hood thanks to mounting in springs
- Fullfield plate which forms planting gullies (with depth adj)
Compact 4 x 75
- WIDIA hook tines iso standard (4x75) (50x12 mm)
- Set Subsoiler tines (4), mounted in front of cultivator, hydraulically in height adjustable = CULTISET (shares 40-20-20-40)
- Set Subsoiler tines light soils (4) (mechanically mounted to frontal chassis beam)
- Cleaning system for vibrating hood, with hydraulic cylinders
- 380HP gear box + double drive (limited availability)
- Seedbed preparation set 3088 mm (fullfield plate + spiral roller)
Compact 4 x 90
- WIDIA hook tines iso standard (4x90) (50x12 mm)
- Set Subsoiler tines light soils (4) (mechanically mounted to frontal chassis beam)
- Cleaning system for vibrating hood, with hydraulic cylinders
- Seedbed preparation set 3800 mm (fullfield plate + spiral roller)
